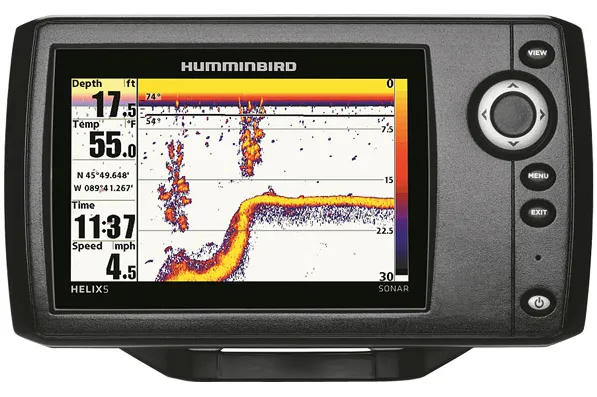

The HELIX 5 Sonar G2 with our new user interface and operating system, features a brilliant 800H x 480V, 5″ 256 color display with backlight. DualBeam PLUS sonar with 4000 watts PTP power output. Maximize your angling experience with the Humminbird HELIX 5 Sonar G2 fishfinder system. This unit includes transducer.
DISPLAY
- 5″ diagonal
- 800H x 480V
- Colour TFT
SONAR
DualBeam PLUS™ w/ SwithcFire™
- 200 kHz / 20° @ -10db
- 83 kHz / 60° @ -10db
- Depth: 457m
ADVANCED SONAR FEATURES
- SwitchFire™ Sonar
POWER OUTPUT
- 500 Watts (RMS)
- 4000 Watts (Peak-to-Peak)
WARRANTY
- 2 Years
USER-FRIENDLY TECHNOLOGY
- Large Digits View
- Custom View Selections
- Custom Digital Readout Selection
- Selectable Display Colors
- Selectable Background Colors
- Temperature Alarm
- X-Press™ Menu System
Specifications
| GPS FEATURES | ||
| Display Size | 5″ Diagonal | GPS Receiver |
| Display Pixel Matrix | 800H x 480V | GPS Trackplotting |
| Display Type | Colour TFT | GPS Chartplotting |
| Display Colours/Grayscale | 256 Colours | Waypoints, Routes, Tracks/Points |
| Sonar Coverage | DualBeam PLUS™ w/ SwitchFire™ 200 kHz / 20° @ -10db 83 kHz / 60° @ -10db |
|
| Target Separation | 64mm | |
| Power Output (max.) | 500 Watts (RMS) 4000 Watts (Peak-to-Peak) |
|
| Current Draw | 615 mA | |
| Depth Capability | 107m DI; 183m DB | |
| Temperature | Yes | |
| Waterproof | Yes | |
| Unit Size – Gimbal Mount | 192mm W x 118mm H x 84mm D | |
| Unit Size – In-Dash Mount | 192mm W x 109mm H x 29mm D | |
| Mount | Gimbal or Optional In-Dash Mounting Kit | |
| Transducer – Standard | 103303 | |
| Transducer Mounting – Standard | Transom | |
| Power Input | 10-20 VDC | |
