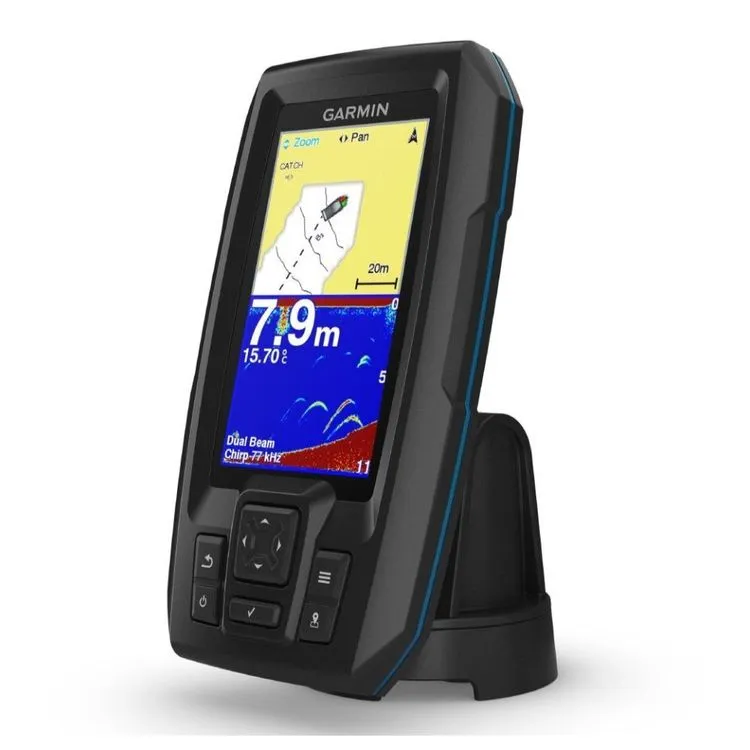

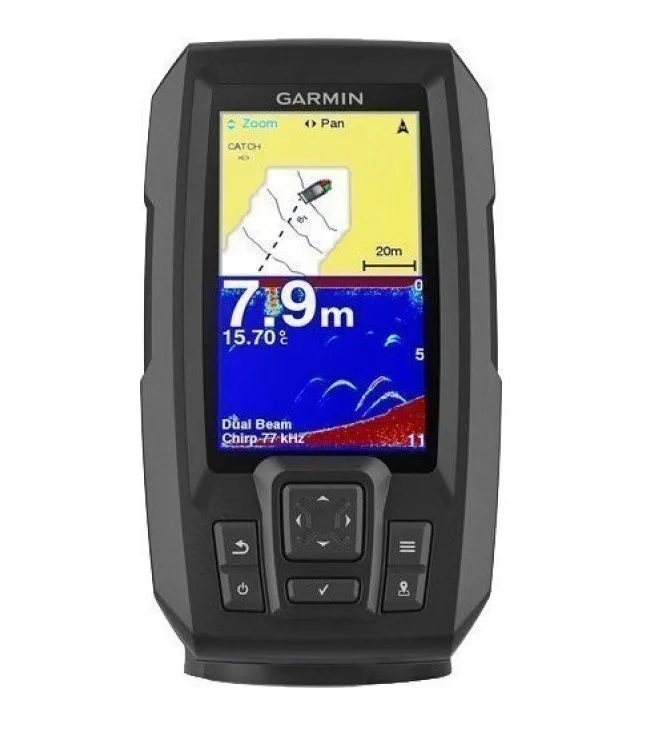

Garmin Striker Plus 4 Fishfinder is an easy to use 4" colour Fishfinder that delivers industry-leading Sonar performance, with built-in CHIRP imaging, dual Beam Transducer, and a high standard of Target Separation.

You can also access the Quickdraw Contours Community to share some of your new maps or download new data. Quickdraw Contours map drawing software will keep a HD repository of maps as you travel around, and allows marking of Waypoints so you can always easily return to your favourite spots.

Also, CHIRP imaging sends a continuous sweep of frequencies and interprets them individually upon their return for better Target Separation and clarity.

Features

- Built-in CHIRP sonar
- Quickdraw Contours: create and store maps with 1’ contours for up to 2 million acres
- Built-in GPS: mark waypoints, create routes and view boat speed
- Easy to operate user interface
- Rugged design for use in harsh environments
- Split the screen to view multiple displays all at once
- Supplied with Striker Plus 4 unit , Dual Beam Transducer, Tilt/Swivel Mount & Power/Data Cable

Box Contents

- Striker Plus 4 unit
- Dual Beam Transducer
- Tilt/Swivel Mount
- Power/ Data Cable

Specifications

- Model: MPN 010-01870-01
- Dimensions: 98mmW x 174mmH x 45mmD
- Screen Size: 4.3"
- Display Resolution: 272W x 480V pixels
- IPX Water Rating: IPX7
- Voltage: 12vDC
- Wattage: 2.76w
- Transmit Power: 200w RMS
- Ethernet Ports for multiple screens: None
- Mounting Options: Bracket Mount and Flush-mount
- WiFi Connectivity: None
- Expansion Card Slot: None
- Accepted Map Cards: None (User Quickdraw Contours Only)
- Waypoints: 5000
- Routes: 100
- Track Log: 100
- Sonar Compatible: Yes
- Operating Frequency: 50KHz, 77KHz, 83KHz, 200KHz
- Down Imaging (Transducer Dependant): None
- Sonar Useable Depth (T/D & Frequency Dependant): 70m
- Side Imaging (Transducer Dependant): None
- Output Power: RMS 200w
- Water Temperature: Yes
