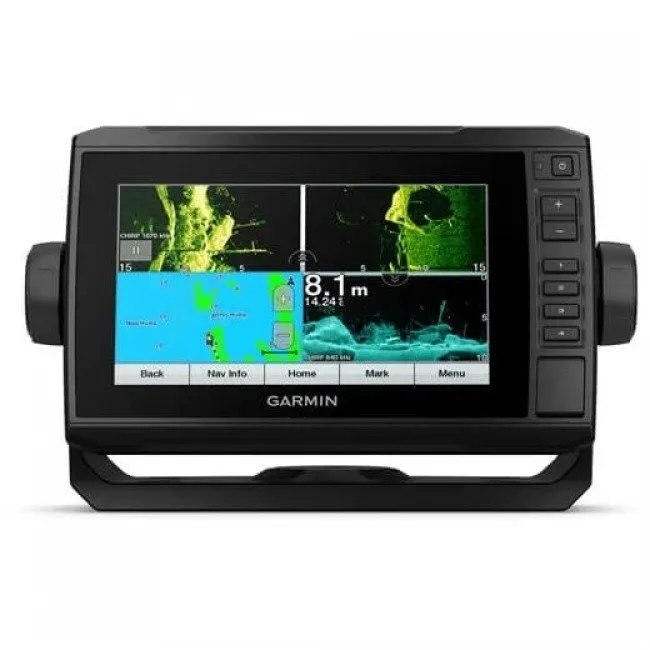

Garmin EchoMap 75sv UHD Combo features Ultra High-Definition ClearVu Sonar, SideVu imaging as well as CHIRP traditional Sonar to make your fishing easier, with an all-round view beneath the water.

Features

- 7" WVGA touch-screen display; 800 x 400 resolution
- IPX7 waterproof protection
- Ultra High-Definition ClearVu sonar
- CHIRP traditional sonar
- Built-in Wi-Fi to connect to ActiveCaptain app for access to OneChart
- Power Consumption: 15w
- Transmit Power: 500w rms / 4000w (peak to peak)
- Internal 5Hz GPS/GLONASS Reciever refreshes position and Heading 10 times/second, resulting in a fluid and constant on screen location for navigating and making waypoints
- 100 routes and 50,000 waypoints
- Quickdraw Contours allows for easy mapping of your own routes and regular points of interest
- NMEA 2000 - connect to autopilots, digital switching, weather, Fusion-Link audio, VHF, AIS and more
- Garmin Panoptix Port
- 1 x microSD card (32GB max card size)
- Preloaded with Bluechart g3 mapping

Specifications

- Model: 010-02528-20
- Dimensions: 250mmW x 139mmH x 51mmD
- Screen Size: 7"
- Display Resolution: 800W x 400V pixels
- Wattage: 15W
- NMEA0183 Compatibility: Yes
- NMEA2000 Compatibility: Yes
- Mounting Options: Bracket Mount and Flush Mount
- WiFi Connectivity: Built-in
- Chirp Sonar: Yes
- Operating Frequency: 50KHz, 77KHz, ClearVu CHIRP 260/455kHz, SideVu CHIRP 455/800kHz, 200KHz, CHIRP 150-240KHz
- Side Imaging (Transducer Dependant): Yes
- Output Power: RMS 500W
